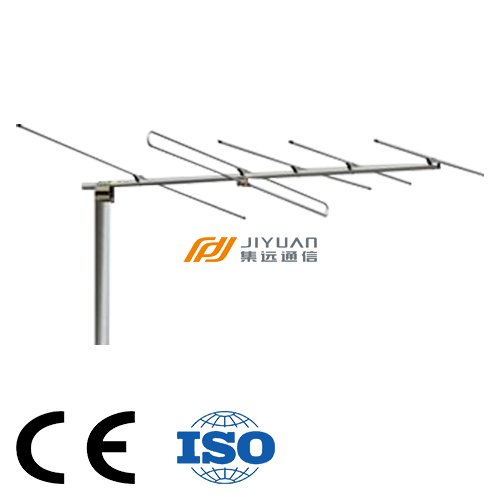

Yagi Antenna TA-400C
| Item | Specifications |
| Working Frequency | 380~450 MHz |
| Working Bandwidth | 50 MHz |
| Gain | 10dBi |
| Horizontal Beam Width | 44° |
| Vertical Beam Width | 40° |
| Front-to-Back Ratio | ≥16dB |
| V.S.W.R. | ≤1.8 |
| Input Impedance | 50Ω |
| Polarization | Horizontal or Vertical |
| Max. Power | 100W |
| Connector | N-Female or Customized |
| Length | ≤1.2m |
| Weight | ≤1.0kg |
| Diameter of Supporting Pole | Φ40~50mm |
| Marking | CE |
| Standards | EN 61000-6-1,EN 61000-6-3 |
