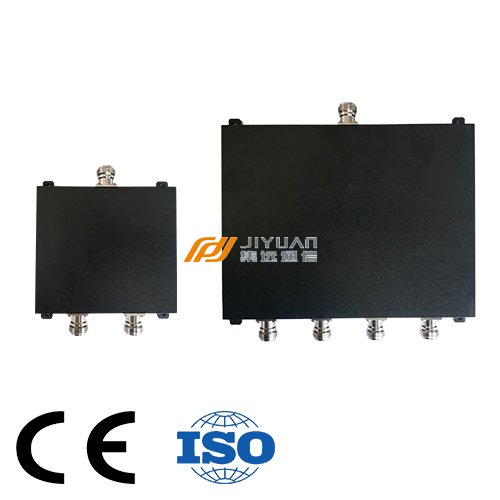

Power Splitter TS-1040A
Technical Specifications
|
Item |
Specifications |
||
|
2 way Splitter |
3 way Splitter |
4 way Splitter |
|
|
Frequency Range |
80~450 MHz |
||
|
Insertion Loss |
<3.6dB |
<5.8dB |
<7.5dB |
|
Isolation |
>20dB |
||
|
VSWR |
<1.3 |
||
|
Power Handling |
50W |
||
|
Input Impedance |
50Ω |
||
|
Connectors |
N-Female |
||
|
Operating Temperature |
-20~+65°C |
||
|
Application |
Indoor |
||
|
Dimensions |
112*136*23mm |
205*148*23mm |
205*185*23mm |
|
Weight |
0.5kg |
1.2kg |
2kg |
|
Marking |
CE |
||
|
Standards |
EN 61000-6-1,EN 61000-6-3 |
||
